Wafer type butterfly valve

In the process of managing the flow of liquids and gases throughout industrial systems, the wafer butterfly valve is a fundamental piece of equipment that you can’t do without. This type of valve is used across multiple industries thanks to its high efficiency and reliability., we’ll delve into wafer type High emperature Butterfly Valve, the benefits they offer installing and maintenance precautions, how to select the suitable valve for your system, as well as their advantages and disadvantages.

A wafer butterfly valve is a type of valve that control flow with a disc mounted in the center of the pipe. The disc is attached to a rod which may be turned to open or close the valve. During operation, the disc is in line with the flow of the fluid and permit liquid to flow easily. When the valve is shut, the disc is at a right angle to the flow and prevents fluid from flowing through.

Advantages of Using a Wafer Type Butterfly Valve in Industrial Applications

A wafer type butterfly valve is designed to maintain a seal against bi-directional pressure differential to prevent any backflow in systems designed for unidirectional flow.

There are numerous benefits to using the wafer type Cryogenic Butterfly Valve in industry. I ts main advantage is its small size being very easy to install, especially when space and weight are the critical issues. The lightweight and self supporting valves need lesser support than the other types of the valve, thereby reducing the installation costs. Wafer butterfly valves are also designed to open and close quickly, which is preferable if your processes require fast flow modulations.

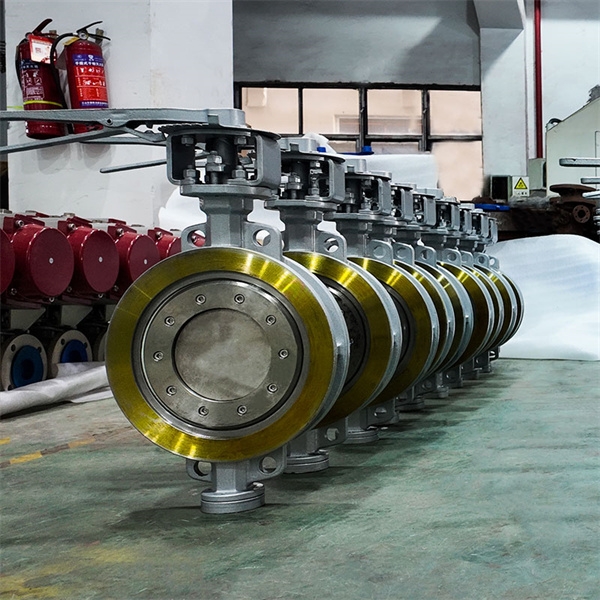

Installation and Maintenance Tips for Wafer Type Butterfly Valves
Wafer type butterfly valve long life performance depend on proper installation and maintenance. Properly positioning a valve during installation is vital step to avoid unwanted leaks and damages. The life of the valve can be prolonged if a maintenance schedule is followed that includes lubricating the moving components and inspecting for wear. The manufacturer’s maintenance and repair instructions should be observed in order to run the valve effectively as well.

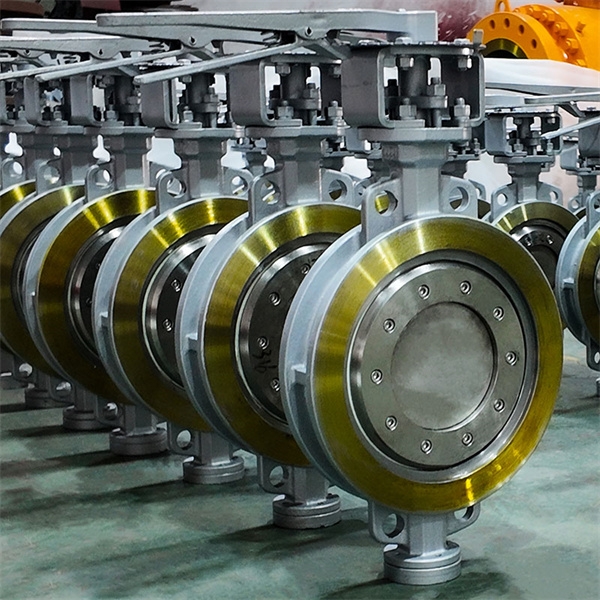

Choosing the Right Wafer Type Butterfly Valve for Your System
When looking at selecting a wafer type butterfly for your system, there are some aspects to look at. Hastelloy valves sizing must be appropriate for the valve size, this will allow the correct flow to reach GC. What material the valve is made of is a factor, as it needs to be compatible with the fluid being handled. Depending on temperature and pressure in your application, you dischargeable valve might be higher ranging.

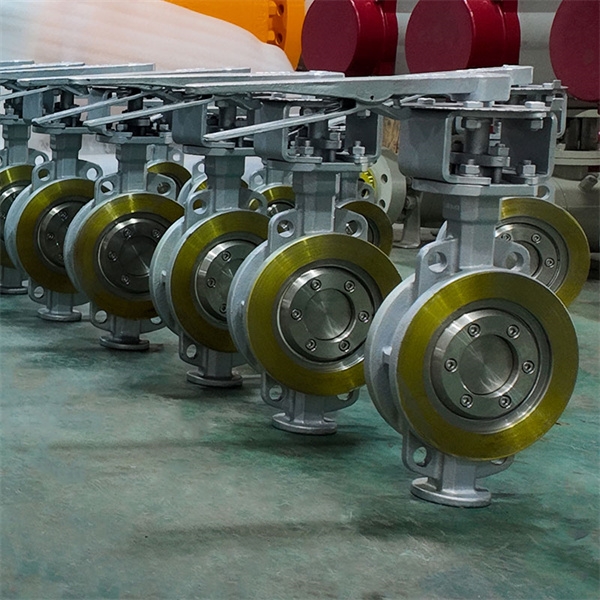

The Pros and Cons
Like any other instrument, even the wafer type butterfly valves have their own set of advantages and disadvantages. They are small in size, can work rapidly and are cost efficient. But, none of these can be used for high pressure or tight shut-off systems. After been said, all the pros and cons of the wafer type butterfly valve are here. The big question is “whether this form of pipe clamp valve is the accurate option for your system?”
