What is the material selection guide for high-temperature valves in the temperature range of 550°C to 1100°C?

Material selection for high-temperature valves under operating conditions ranging from 550°C to 1100°C requires comprehensive consideration of factors including temperature, pressure, medium characteristics and cost. The core principle is that materials must possess progressively higher hot strength, oxidation resistance and creep resistance as operating temperature increases.

Material Selection Guide by Temperature Range：

550°C to 650°C: Chrome-Molybdenum Alloy Steel (Cr-Mo Steel)

Within this temperature range, plain carbon steel exhibits a significant drop in strength and undergoes graphitization. Therefore, low-alloy steels alloyed with elements such as chromium (Cr) and molybdenum (Mo) must be selected. These materials possess excellent hot strength and creep resistance.

·Typical materials:

WC9 (2¼Cr–1 Mo): Maximum service temperature is approximately 593°C. Commonly used in applications such as superheated steam and high-temperature hydrogen service in refineries.

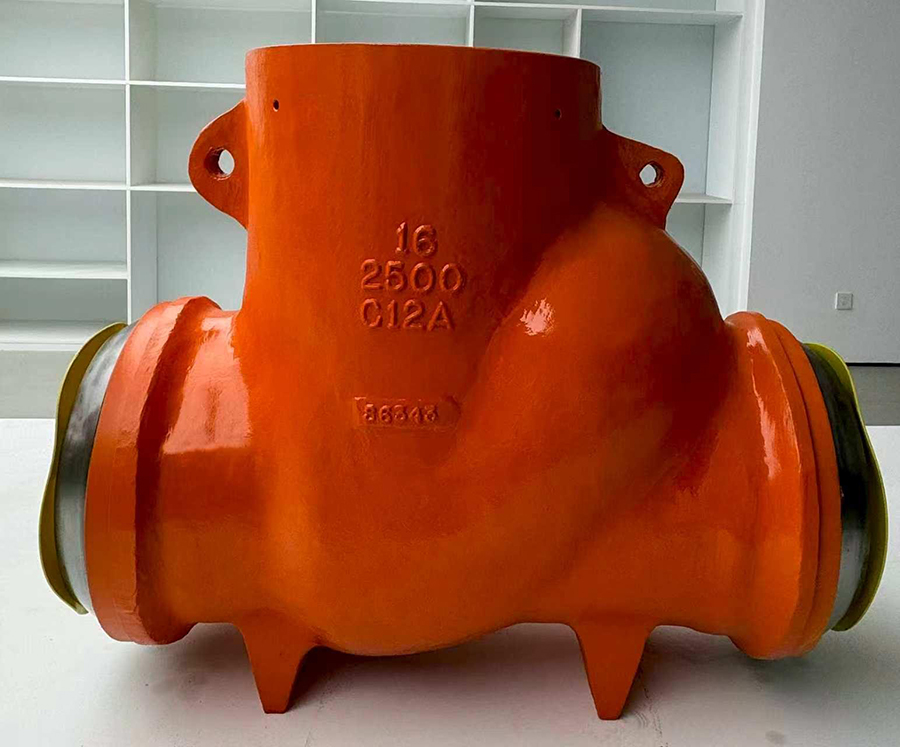

C12A (9 Cr – 1 Mo – V): With superior performance, its maximum service temperature can reach 620°C. Widely used in more demanding applications such as supercritical power plants.

650°C to 816°C: Heat-Resistant Stainless Steel

When the temperature exceeds 650°C, chrome-molybdenum steels can no longer meet the performance requirements, and austenitic heat-resistant stainless steels should therefore be selected. These materials retain good microstructural stability and oxidation resistance at high temperatures.

·Typical materials:

 CF8M / 316 Stainless Steel: Exhibits good corrosion resistance and heat resistance below 816°C, suitable for corrosive high-temperature chemical media.

 SUS310S (310S Stainless Steel): A versatile high-temperature stainless steel with a maximum service temperature of approximately 1035°C, but it is most commonly applied in the 650°C to 800°C temperature range.

816°C to 1100°C and above: Nickel-Based Superalloy

For extreme high-temperature operating conditions exceeding 816°C, plain stainless steels exhibit insufficient strength and oxidation resistance, and nickel-based (Ni-based) superalloys must therefore be employed. These alloys possess exceptional hot strength, excellent oxidation resistance and hot corrosion resistance.

·Typical materials:

Inconel Alloys: e.g., Inconel 625, with a maximum service temperature up to 1100°C, performs excellently in extreme environments such as high-temperature petrochemical pipelines.

HK-30 / HK-40: These cast heat-resistant alloys are also commonly used for ultra-high temperature valves.

H06601: A domestic nickel-based superalloy developed in China. It has been successfully applied in extreme operating conditions of 900°C to 990°C, with its deformation far below the allowable limit.

Material Selection Quick Guide

For a more intuitive comparison, please refer to the table below:

Besides materials, these designs are also critical.

Under ultra-high temperature service conditions, material performance alone is insufficient, and the structural design of valves is equally crucial:

1. Heat dissipation and cooling: Extended bonnets with cooling fins are adopted to dissipate heat away from the stuffing box area, so as to protect stem packing (generally flexible graphite) and actuators. For extreme working conditions, water cooling jackets shall even be designed to cool the valve body.

2. Prevention of jamming caused by thermal expansion: Components expand under high temperature. Appropriate clearances shall be reserved in design, or self-aligning structures such as flexible wedges and spherical valve plugs shall be applied to avoid valve jamming due to thermal expansion.

3. Hard sealing design: Conventional soft sealing materials such as PTFE will fail above 500°C. Metal-to-metal hard sealing is mandatory, and hard alloys like Stellite are commonly overlaid on sealing surfaces to enhance wear resistance and sealing performance.
