Flashing and Cavitation in Control Valves: Mechanism, Hazards and Protection

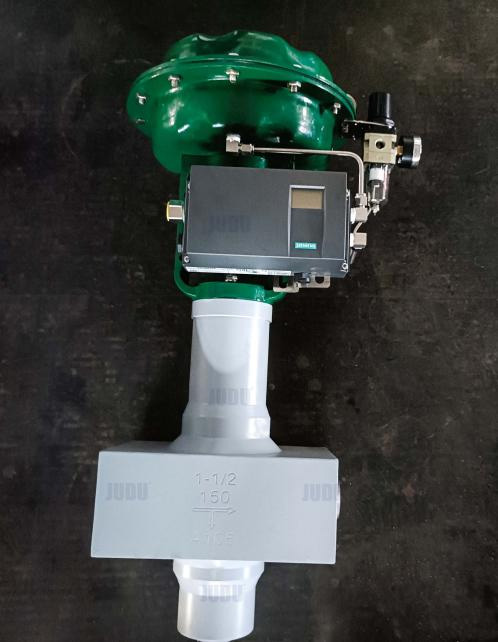

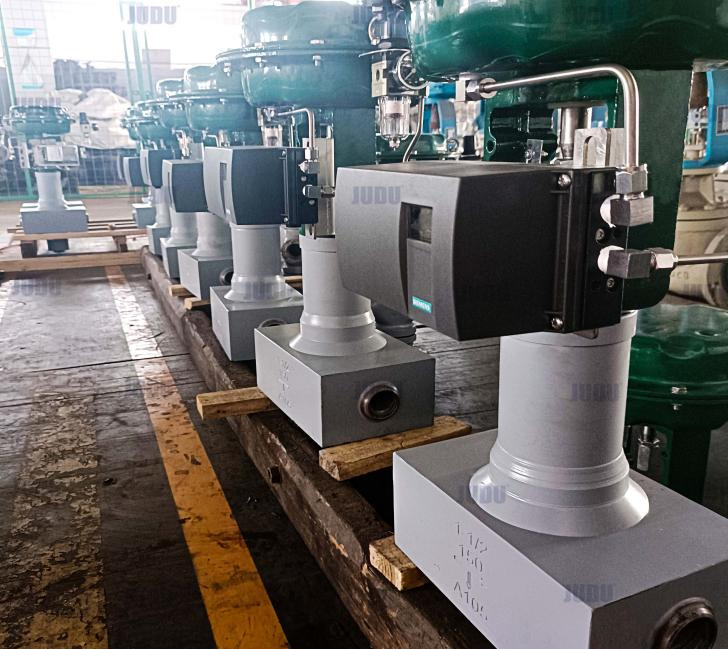

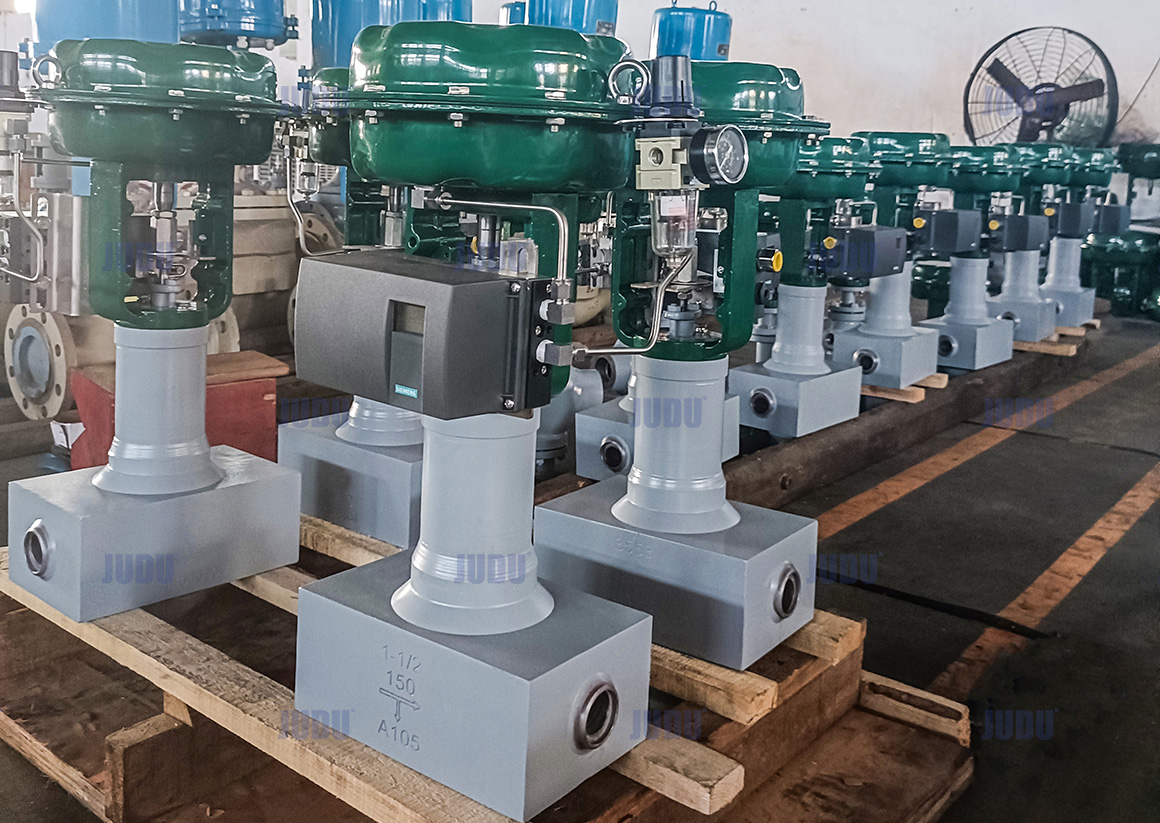

In liquid piping systems with high pressure differential, the control valve is not only the core of flow control but also a "battlefield" for intense fluid energy conversion. When the pressure differential across the valve is excessively large, Flashing and Cavitation are easily induced. These two physical processes not only severely erode valve internals and drastically shorten service life, but also cause flow choking, severe vibration and excessive noise, threatening the safety and stability of the entire production system.

This paper analyzes their formation mechanisms, destructive effects, and provides effective engineering protection countermeasures.

1. Core Definitions and Formation Mechanisms

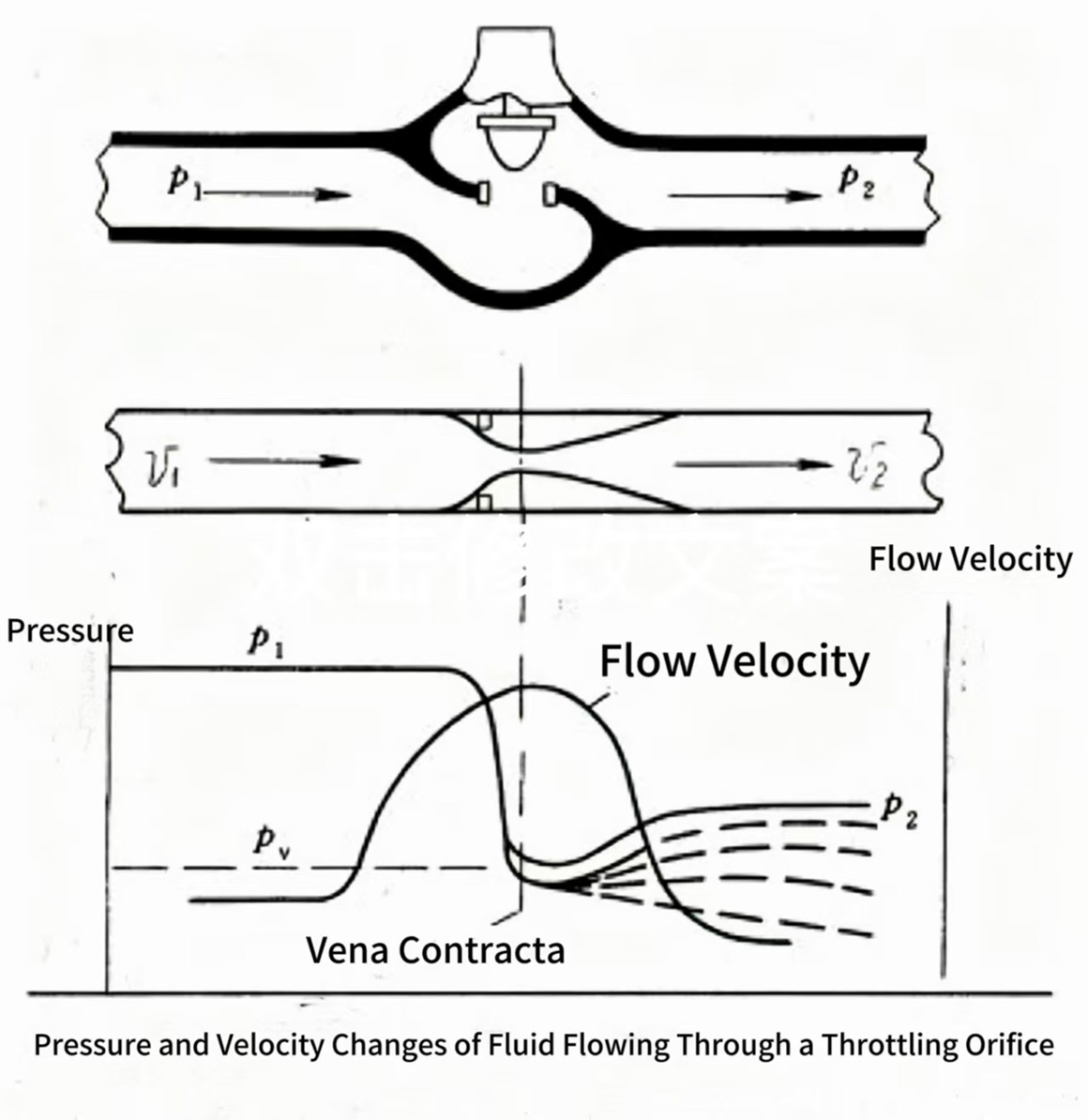

As a local resistance component, the throttling port formed by the valve plug and seat of a control valve is the key area for fluid energy conversion. According to Bernoulli's equation, when fluid flows through this area, the flow velocity increases sharply and the static pressure drops abruptly, forming a region with the minimum flow beam and lowest pressure shortly downstream—the Vena Contracta.

1.1 Flashing

Definition: When the pressure at the vena contracta (Pc) drops to or below the saturated vapor pressure (Pv) of the fluid at the current temperature, part of the liquid vaporizes instantaneously to form a stable vapor-liquid two-phase flow.

Characteristic: It is a unidirectional, irreversible process. Once occurs, bubbles will flow downstream with the fluid without condensing.

1.2 Cavitation

Definition: Cavitation is a two-stage dynamic process.
First stage (Flashing): Identical to the above, bubbles are generated at the vena contracta due to pressure lower than Pv.

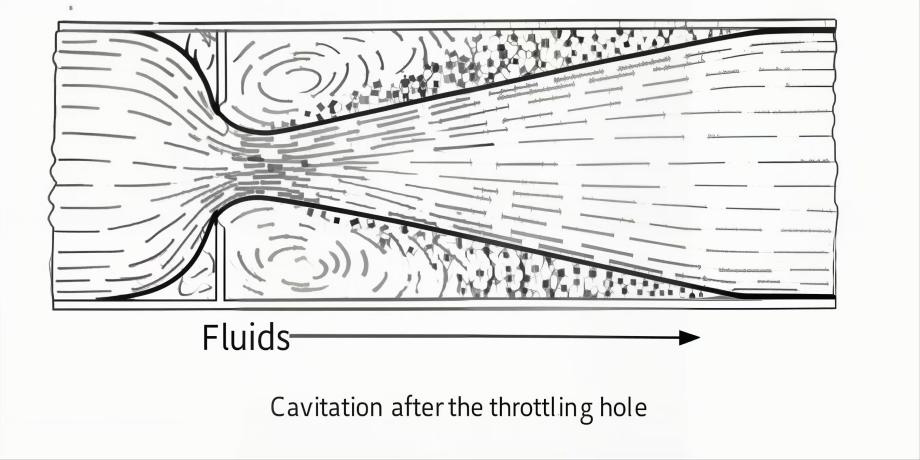

Second stage (Collapse): After the fluid leaves the vena contracta, the pressure gradually recovers as the flow area increases. If the downstream pressure (P2) rises above Pv, these bubbles collapse instantaneously (implode) under high pressure.

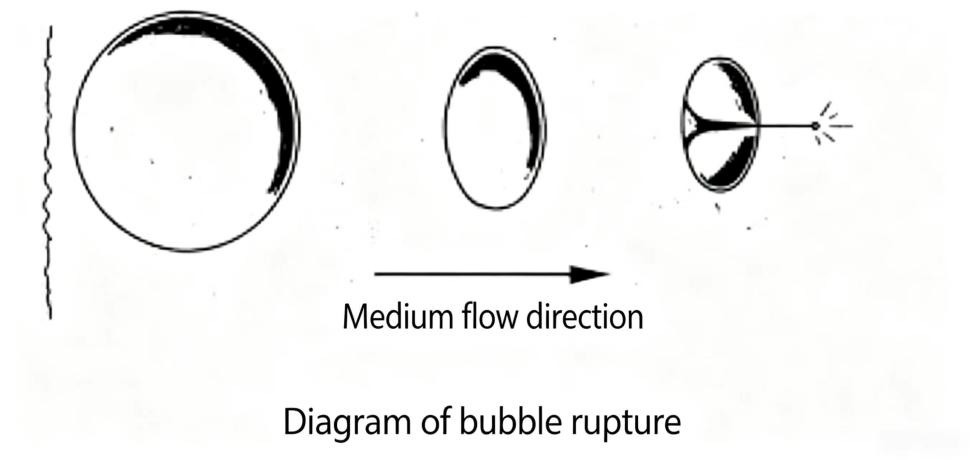

Key difference: The destructive power of cavitation does not come from the bubbles themselves, but from the strong shock waves generated when they collapse.

Simple summary: Flashing is "birth", cavitation is "the cycle of birth and death". Flashing produces bubbles, while cavitation means bubbles are generated and then crushed.

2. Analysis of Destructive Effects

2.1 Effects of Flashing

Erosion: High-speed vapor-liquid two-phase flow causes continuous mechanical erosion on the surfaces of the valve plug and seat, especially at flow path corners and reducers, where materials are gradually worn away to form smooth grooves or pits.

Distorted flow characteristics: The existence of two-phase flow invalidates flow calculation formulas based on single-phase fluid, leading to reduced control accuracy.

2.2 Effects of Cavitation (more severe)

Cavitation Erosion: The most fatal hazard of cavitation. When bubbles collapse near the solid metal surface, their internal energy is released in an extremely short time (microseconds), generating micro-jets and shock waves up to thousands of atmospheres. Such repeated, concentrated impacts act like "micro-bombs", constantly tearing the metal surface and forming honeycomb or sponge-like rough pits. Under severe working conditions, a ordinary stainless steel valve plug may only last for a few days, and even hard alloy cannot survive for more than one year.

Choked Flow: A large number of bubbles accumulate at the vena contracta, reducing the effective flow area, hindering further increase of flow rate, and causing the valve to lose regulation capability.

Severe vibration and noise: Collective collapse of bubbles produces high-frequency, high-intensity vibration and sharp noise (often described as the sound of flowing sand), which not only affects the working environment but may also damage the valve and its connected pipelines.

3. Engineering Protection and Selection

Facing the threats of flashing and cavitation, protection should be carried out from multiple dimensions: system design, valve selection and material selection.

3.1 System-level Optimization

Reduce valve pressure drop: Adjust pump head, increase downstream back pressure or adopt a multi-stage pressure reduction scheme to ensure the pressure at the vena contracta is always higher than Pv, fundamentally avoiding flashing and cavitation.

3.2 Valve Structure Selection

Multi-stage pressure reduction plug: Divides the total pressure drop into multiple small pressure drops, keeping the pressure of each stage above Pv to effectively suppress cavitation.

Tortuous flow path / labyrinth plug: Extends the fluid path, increases friction loss, smoothes the pressure recovery process, and reduces the energy of bubble collapse.

 Globe Valve : Compared with straight-through ball valves , its flow path is more conducive to dispersing impact force, and the top-to-bottom medium flow can use gravity to help bubbles detach from the valve plug surface.

3.3 Key Material Upgrade

Hardening treatment: Apply surface hardening to vulnerable parts such as valve plugs and seats, e.g., hardfacing Stellite alloy, spraying tungsten carbide (WC) or nitriding treatment, greatly improving erosion and cavitation resistance.

Solid hard alloy: For extremely harsh working conditions, valve internals made of solid hard alloy can be selected.

Conclusion

Flashing and cavitation are unavoidable physical challenges for control valves in high-pressure-differential liquid applications. Understanding their mechanisms of "birth" and "death" is a prerequisite for formulating effective protection strategies. Through scientific system design, reasonable valve selection and robust material support, these destructive effects can be minimized, ensuring that control valves fulfill their control missions accurately, reliably and durably under severe working conditions.
