How to choose sealing material of ball valve for Polysilicon pipeline?

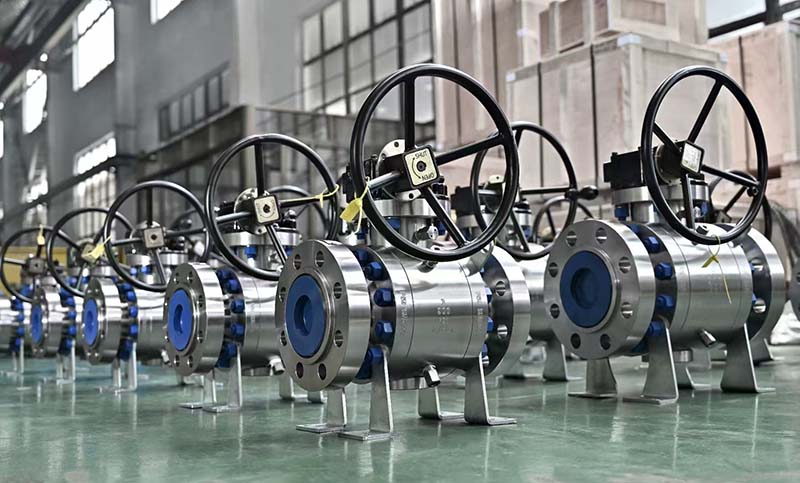

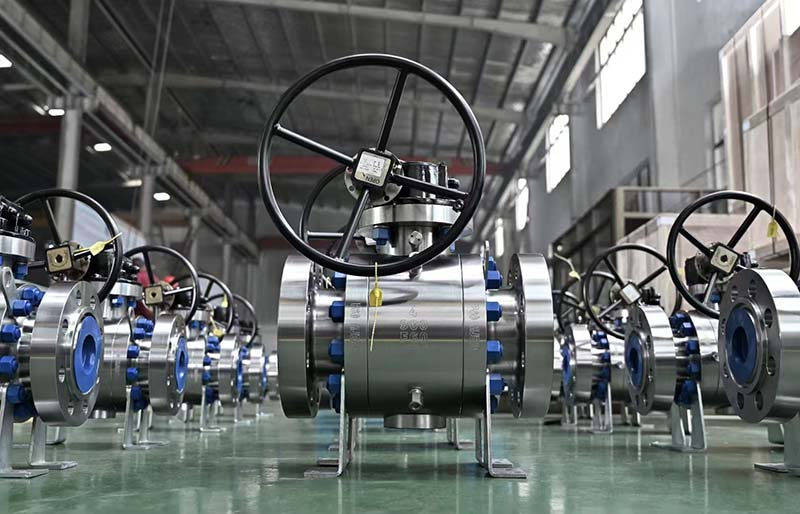

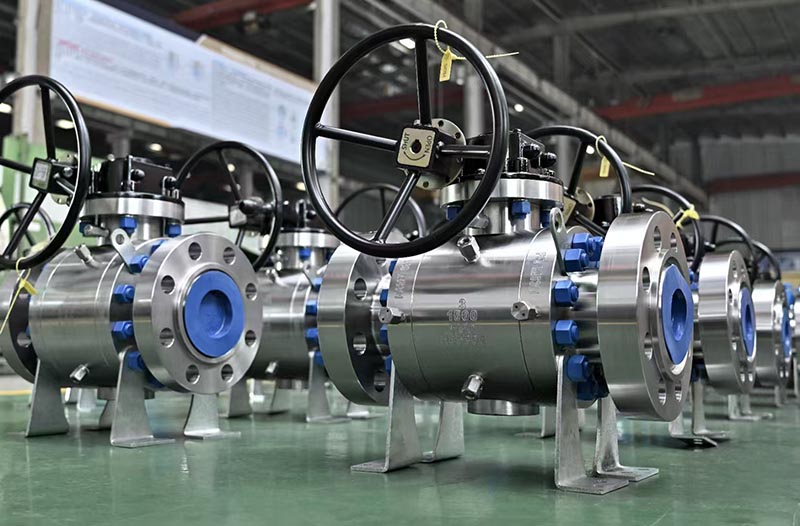

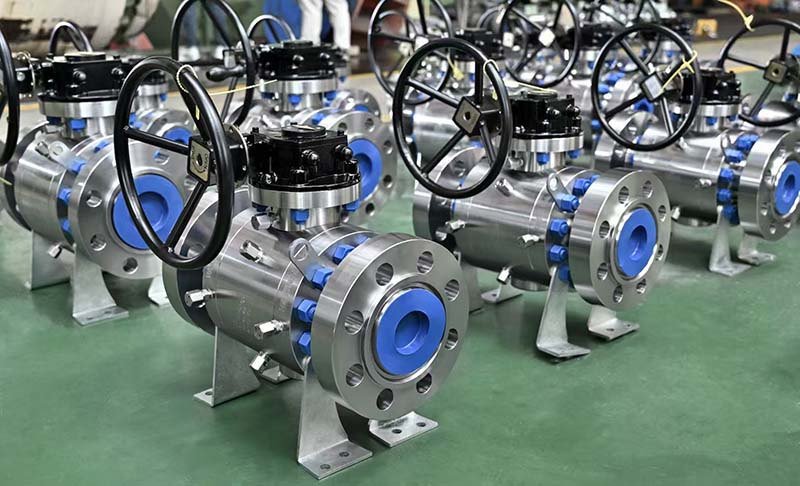

Polysilicon special ball valve is the key equipment in the polysilicon production system, which has the function of cutting off to conducting.Due to the production process of polysilicon involves extreme conditions such as high temperature, high pressure, corrosive media, and silicon powder wear, which impose strict requirements on valve sealing.

The following are the key points and recommended solutions for selecting sealing materials based on the characteristics of polysilicon technology:

Key selection elements

Operating condition adaptability

●Temperature range: The temperature of polycrystalline silicon process is usually -70 ℃~540 ℃, and can reach up to 300 ℃ instantly (such as the inlet and outlet of the reduction furnace)
●Medium characteristics: It needs to withstand strong corrosion and abrasion media such as chlorosilane, hydrogen chloride, hydrogen gas, silicon powder particles, etc.
●Pressure rating: High pressure pipelines (such as hydrogenation reactors) need to withstand a pressure of over 10MPa

Sealing performance requirements

●Leakage class: Must meet the fugitive emsisson ISO 15848-2 Class B, especially for hydrogen pipelines that require fire and explosion prevention.
●Wear resistance: Silicon powder has high hardness (Mohs hardness 7), and the sealing surface needs to be sprayed with hard alloy (such as tungsten carbide) with a hardness greater than 75HRC.

Sealing materials classification and applications

Soft sealing material

Suitable for middle and low temperature (≤ 200 ℃), low pressure working conditions, requiring both elasticity and corrosion resistance:

● Modified PTFE (polytetrafluoroethylene)
Advantages: Excellent corrosion resistance (resistant to hydrochloric acid and chlorosilane), low friction coefficient.
Limitations: Easy to creep under long-term high temperature, suitable for temperatures ≤ 200 ℃

● Perfluoroether rubber (FFKM)
Advantages: Wide temperature resistance range (-20 ℃~315 ℃), chemical corrosion resistance, up to level 0 mold resistance, meeting hydrogen sealing requirements.
Application: Valve seat O-ring, shell gasket (replacing wrapped gasket to prevent brittle failure)

● PEEK (polyetheretherketone)
Advantages: High temperature resistance (250 ℃), high wear resistance, fatigue resistance, suitable for high-pressure floating ball valve seat.
Case: Replace graphite sealing rings to avoid the problem of silicon powder jamming in spring chambers.

Metal sealing material

Suitable for high temperature, high pressure, and high abrasion conditions:

●Surface spraying technology:
Sealing surface hardness requirements: The average particle size of silicon powder particles is only 0.3 μ m and the hardness is high. Through supersonic spraying (HVOF), the sealing surface needs to be sprayed with superhard materials such as tungsten carbide WC and chromium carbide CrC, with a hardness greater than 75 HRC, to resist silicon powder erosion.
Design points: The ball and valve seat should maintain a hardness difference of 5 °~10 ° to prevent scratches on the sealing pair.

●Fully hard alloy valve seat:
The substrate is made of austenitic stainless steel (such as 316L), and the sealing surface is welded with Stellite alloy, which is resistant to particle erosion.

Auxiliary sealing structure

●Spring protection design:
The rear of the valve seat is equipped with a graphite filter ring (stainless steel wire skeleton+low-density graphite), which allows hydrogen gas to pass through but blocks silicon powder, avoiding the blockage and failure of the spring chamber.

●Metal Spiral Wound Gasket
Replace perfluoroether O-rings with optimized groove sealing structures to avoid high-temperature embrittlement and installation compression damage.

Special working condition solution

1) Superhigh temperature(>300℃)
● Sealing surface: hard alloy spray coating+elastic metal valve seat (such as Inconel 718)
● Valve body gasket: Nickel based alloy spiral wound gasket (such as Inconel 625/graphite).

2) Hydrogen environment
● Material degreasing treatment: degreasing according to GB 16912 standard, carbon steel needs to be rust proof packaged.
● Fireproof structure: Double sealing (such as perfluoroether rubber+metal wrap gasket) or grease injection emergency sealing.

3) Silicon powder abrasion
● Full spray coating of flow port: the rounded corners of the spherical flow port and the back of the valve seat are sprayed with hard alloy in all directions.
● Design of trapezoidal groove at the end of the valve seat: reduces the accumulation of silicon powder and minimizes erosion damage.

Selection Summary (Comparison Table)

Operation and maintenance suggestions

1) Installation direction: It is recommended to install the pneumatic/electric drive vertically to avoid water accumulation in the drive mechanism.
2) Regular grease injection: The high-pressure ball valve is equipped with a grease injection valve, which regularly injects silicone grease sealant (such as Torr Seal) to delay seal aging.
3) Shutdown protection: Long term shutdown requires cleaning of the valve chamber silicon powder to prevent clumping and jamming.

By integrating operating parameters, material characteristics, and structural optimization, the sealing of polycrystalline silicon ball valves can balance safety and economy. The actual selection needs to be finely evaluated based on the composition of the medium, pressure curve, and maintenance cost.
